Yamaha AVENTAGE RX-A3000 Audio/Video Receiver: An Inspired Leap Forward in Home Entertainment

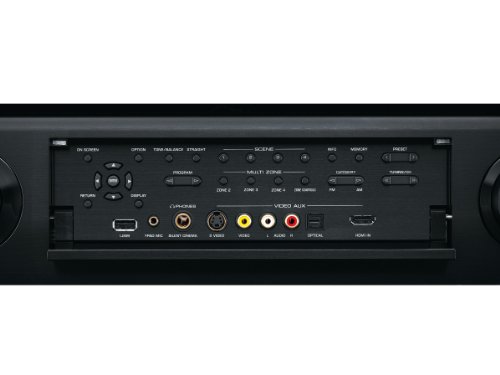

An elegant look with discreet but powerful front panel controls. Click to enlarge

AVENTAGE is a dramatic, inspired leap forward in audio/video component design. AVENTAGE brings studio grade sound and sophisticated video enhancements to your home with unparalleled attention to detail in design, engineering, and fabrication. We rethought every electrical path, every part, every piece, and every material to maximize performance. Details that at first glance would not seem to affect the quality of sight, sound, and control, when brought together in an AVENTAGE component, produce a work of visual and acoustic art.

In addition to an innovative new construction design, the RX-A3000 A/V Receiver offers 3D and Audio Return Channel over 8 in/2 out HDMI, CINEMA DSP 3D, HQV video quality, new GUI, new YPAO with Reflected Sound Control, and an RS232 port with and Control4® certification for integration with custom installations. Along with network functions like DLNA certification and control via your web browser, the RX-A3000 is ready to become your home entertainment power player.

A Unique Approach to Enhanced Performance

Enhanced Stability: Double Bottom Construction and a Specially Designed 5th Foot (A.R.T. Wedge)

A specially designed fifth foot adds even more stability to reduce vibration

Strong stability in an amplifier design reduces noise and jitter in your digital signal for clearer audio and video. Yamaha's AVENTAGE series of amplifiers achieves maximum stability via a new H-shaped cross-member frame, with cross-members supporting the top, bottom, and sides of the chassis. High-grade, heavier terminals reduce vibration at the speaker connections. An additional bottom cover contributes extra support at higher volume levels for the power transformer and heat sinks. And the specially-designed fifth foot at the center of the amplifier--an Anti-Resonance Technology (A.R.T.) Wedge--improves overall structural rigidity and reduces vibration, resulting in a more stable signal and sound improvement.

Enhanced Power: Optimized Power Amplifier Layout with Ultra Low Jitter Circuitry

The symmetrical power amplifier layout evenly distributes weight across the amplifier to control vibration, improving signal-to-noise ratio for an improved sound experience. The high-quality Burr-Brown DACs feature a direct path to ground, not sharing the ground like in other amplifier designs, for a more efficient and clean signal. Built-in Ultra Low Jitter circuitry reduces jitter from digital sources, including HDMI, using a more precise timing control--so you can be sure of a stable audio/video signal, resulting in perfectly reproduced images and sound.

A hybrid power supply makes the AVENTAGE series even more efficient. Independent power supplies for the digital and analog circuit results in less power consumption in standby mode, and a more efficient power transformer--so despite the power of the RX-A3000, it could cost you less to run.

Browse music, movies and setting with the new full-color GUI. Click to enlarge

Unparalleled Control: New GUI, Web Browser Control, iPhone App, and RS-232 for Custom Installation

The RX-A3000 features many ways to control your media. A new full-color GUI with support for album art lets you browse movies, music, and settings on your HDTV. DLNA compatibility delivers network features: Using a local area network (LAN) connection and Windows Media Connect, you can play MP3, WMA and WAV music from your PC or laptop, or listen to any of the thousands of stations available on Internet radio using the included MP3 vTuner data service. Yamaha Network Receivers get you connected to the vast music content available anywhere on your LAN and on the web. You can even control your receiver from any computer in your local area network via a web browser.

Use your iPhone to control the network AVENTAGE receiver

The improved GUI lets you control your home entertainment system and adjust settings simply. Its updated, intuitive interface features an HD overlay, so you can call the menu and it will appear unintrusively for quick commands--without interrupting or switching from whatever's playing onscreen.

An RS-232 port lets the RX-A3000 integrate easily with any custom home theater installation. Control4® certification provides effortless entertainment, comfort, convenience and peace of mind with one of the most popular home automation platforms.

Need more connection options? The Yamaha AVENTAGE Control App allows for key control functions over your AVENTAGE networked multi-zone receivers. Allowing for instant access to music and other contents you want to enjoy in each of the connected zones. Current functionality includes multi-zone control over the available inputs, volume, mute and power commands by zone. The RX-A3000 also has a USB port for connecting your portable audio player or flash drive. It's SIRIUS Satellite Radio ready for even more music (subscription required). Or expand further with optional accessories like the Yamaha YDS-12 Universal Dock for iPod or the Yamaha YBA-10 Bluetooth Wireless Audio Receiver (sold separately).

How AVENTAGE Delivers Lifelike Sound and Picture Quality

The Latest HDMI Features and High-Definition Audio Decoders for a Cinematic Experience

With seven channels and 980 watts of powerful surround sound (140W x 7 RMS), you can immerse yourself in your favorite movies and music. The latest HD Audio format decoding such as Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, and DTS-HD High Resolution Audio render soundtracks in lifelike detail. The latest HDMI support brings features like Deep Color (30/36 bit), x.v.Color, 24Hz refresh rate capability, and Auto Lip-Sync compensation.

The RX-A3000 features 8 1080p-compatible HDMI inputs (including 1 front) and 2 HDMI outputs (simultaneous), the RX-A3000 has room and power to spare for all your high-definition home entertainment gear. The front HDMI input is great for quick connection of the latest gaming consoles and HD camcorders.

HQV Video Processing for Upscaled and High-Definition Video

The HQV Vida processor in the RX-A3000 transforms standard-definition sources to HD quality and makes HD look even more detailed by providing real-time clean up of highly compressed video, reducing compression artifacts of block and mosquito noise from lower-quality sources. It incorporates two new IDT HQV technologies--Auto HQV and HQV StreamClean--which automatically enhance the incoming image and provide powerful clean-up of source video, allowing the picture to be as crisp and clean as possible. Analog and HDMI video upscaling to full HD 1080p means you get the best picture quality possible on your HDTV, no matter the source.

Exclusive Yamaha Features for Surround Realism

Yamaha CINEMA DSP is an advanced exclusive technology for creating richly realized independent sound fields that envelop you in an unmatched surround sound experience. With dialogue, music and effects ideally located in these separate sound fields, you will hear sound with accurate placement, smooth movement, exceptional clarity and richness, and startlingly realistic presence. 17 CINEMA DSP 3D settings let you customize the effect for your room. Adaptive DSP Level evaluates the difference between the volume level and a reference level, adjusting the DSP level to ensure optimum effectiveness, so you'll experience cinema-quality audio even at lower volumes.

CINEMA DSP's decoding technology also takes advantage of Yamaha's Compressed Music Enhancer, so you can enjoy your digital music library on your home theater system without sacrificing audio quality. Plus, CINEMA DSP 3D is expandable to 11.2 channels (with front and rear presence speakers) by adding an external amp--so the RX-A3000 is a receiver that can grow with you.

New SCENE PLUS features 12 SCENE choices (4 on front panel for quick setting changes and others via the full-color GUI), including 4 SCENE buttons for Zone 2/Zone 3. Pressing a single SCENE button automatically launches multiple operations to make your devices work together--no more fumbling with the remote control. They are initially set to default settings for DVD Viewing, Disc Listening, TV Viewing and Radio Listening, but can be customized to whatever you need.

Yamaha™'s YPAO system uses a small microphone (included) and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First, it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level until it achieves the best sound conditions for your room--and you don't have to do anything.

Multizone Capability for Extending Your Home Theater Experience

With support for audio and video in up to four zones, controllable by the full-color GUI and/or controls on front panel, the RX-A3000 can become your home entertainment hub no matter what room it's in. An included Party Mode enhances your next get-together. Your zone settings can be saved, backed up, and restored later for convenience.

Technical Specifications

• Output Power: 980 watts (140w x 7 RMS)
• Impedance: 8 ohms
• Frequency Response: 10Hz - 100kHz (+0/-3dB)
• Total Harmonic Distortion: 0.04%
• Signal-to-Noise Ratio: 100dB
• HDMI Inputs/Outputs: 8/2
• USB Inputs/Outputs: 1/0
• Ethernet Inputs/Outputs: 1/0
• Radio: AM/FM with HD Radio
• Dock Terminal for Compatible Accessories: 1
• Optical Inputs/Outputs: 4/1
• Coaxial Inputs/Outputs: 3/0
• Analog AV Inputs/Outputs: 5/1
• Component Video Inputs/Outputs: 4/1
• Composite/S-Video Inputs/Outputs: 5/5/1/1
• RS-232C Inputs/Outputs: 1/0
• Multichannel External Decoder: 8 channels
• Dimensions (W x H x D): 17-1/8" x 7-1/8" x 16-7/8"
• Weight: 37.5 lbs

Which AVENTAGE Series Receiver Is Right For You?

	RX-A3000	RX-A2000	RX-A1000	RX-A800	RX-A700
Power Output	140W x7	130W x7	105W x7	95W x7	90W x7
HDMI 1.4a (In/Out)	(8/2 [Zone B Capable])	(8/2 [Zone B Capable])	(8/2 [Zone B Capable])	(6/2 [Zone B Capable])	(6/1)
YPAO (w/Optimizer Microphone)	(Multi-Point/ Angle/ Reflected Sound Control)	(Multi-Point/ Angle/ Reflected Sound Control)	(Multi-Point)	(Multi-Point)	(Single-Point)
3 Year Warranty
Control 4 Certified
RS-232C Interface
HD Radio w/ iTunes Tagging					-
Zone Audio Output	Zone 2/3/4 (Optical)	Zone 2/3	Zone 2	Zone 2	Zone
Zone Video Output	Component/ S-Video/ Composite	Component/ S-Video/ Composite	Component/ S-Video/ Composite	-	-
iPhone / iTouch App Compatible				-	-
Network Receiver Functions (Incl. DLNA 1.5/ Win 7 Compatibility/ Rhapsody/ SIRIUS Internet Radio)				-	-
Video Processing (w/ HQV Vida)			-	-	-
Video Adjustments	(Adjustable)	(On/ Off)	-	-	-
Channel Expandability w/ Ext. Amp	(Up to 11.2)	(Up to 9.2)	-	-	-

Optional Accessories (Sold Separately)

	Yamaha YDS-12 Universal Dock for iPod/iPhone The optional YDS-12 Universal Dock lets you connect your iPod or iPhone to the receiver.
	Yamaha YID-W10 Wireless Dock System for iPod/iPhone The optional YID-W10 ensures that you enjoy maximum sound quality and no lip sync (AV matching) problems.
	Yamaha YBA-10 Bluetooth® Wireless Audio Receiver The optional YBA-10 supports A2DP audio streaming, enjoying music wirelessly from Bluetooth-enabled mobile phones, Windows PCs and Macs.
